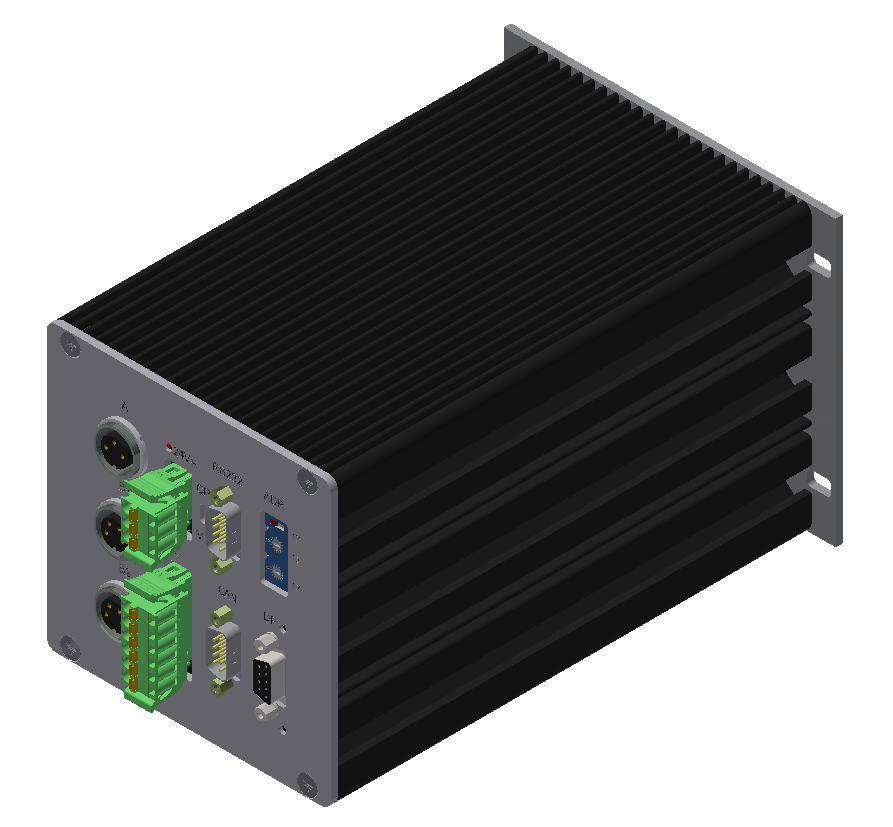

Unbalance measuring instrument, manual BMT340.SM4
For the automation of production facilities
- Unbalance measurement up to max. 2 planes (with 2 vibration sensors)
- CAN bus for the connection of the operating and visualization unit
- CAN-Bus / Profibus for the connection with the machine control system
- Short delivery time
Catalog-# / Description
Technical details
| Technical data |
|---|
| Operating voltage DC 24 V= |
| Power consumption approx. Pmax 30VA |
| Vibration sensor connection 4-pole, 4Vpp, max. +/- 10V= |
| Speed sensor NPN / PNP |
| Measuring range 60 - 18000 rpm |
|
Operation and visualization - on the PC or PC of the control via CAN bus with software Balcon350 - by software of the machine manufacturer via Profibus |
| Dimensions W x H x D 120 x 120 x 206mm |
| weight approx. 2,2 kg |
| Standard housing SM4, aluminium |
| Ambient temperature during operation 0 °C to +50 °C |
| Ambient temperature during storage -10 °C to +60 °C |
| Humidity 20 % to 50 % rel. humidity |
| Accessory | Description | Article | |
|---|---|---|---|
 | Operating modules | 3.BM340 | to product |
 | CAN-USB adapter | 3.CAN.USB.350 | to product |
 | Data cable | 3.DKC.B09xx | to product |
 | Vibration sensor | 3.PU | to product |
 |
Cable (extension), 4-pin for vibration sensors Socket / Plug | 3.4xxBS | to product |
 | Speed sensors | 3.DS | to product |
 |
Cable (extension), 3-pole for speed sensor Socket / Plug | 3.3xxBS | to product |
 |
Magnetic inserts for speed measurement. In conjunction with magnetic speed sensor 3.DS.03.3 | 3.0.M.430602 | to product |
 | Balancing rings | 3.WR | to product |
