Article 3.BMT200-1.OP40 and 3.BMT200-2.OP40

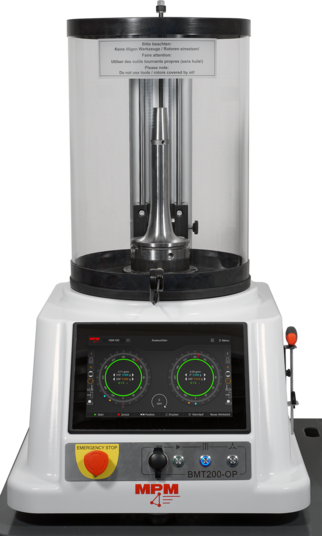

Stand alone balancing station BMT200.OP

No software installation needed. For tool holders up to HSK63 / SK40 / PSC 5

  • Highest balancing accuracy at the best price
  • Simplest operation for everyone
  • Smallest (< 0.1 gram) imbalances detectable
  • For tool holders up to HSK63 / SK40 / PSC 5
  • Highest precision (< 0,5gmm)
  • Improved ease of use > 90%.
  • For 1-+ 2-plane balancing
  • Balancing methods: gram, degree, spread angle, fixed location, radial + axial drilling, milling
  • Display: gmm, gram, quality grade
  • Workpiece weight up to max.: 10kg, workpiece-Ø up to approx. 270mm
  • Workpiece length up to approx. 400mm
  • Immediately usable
  • Test report at the touch of a button
  • Weight only approx. 50 kg
  • HDMI interface for additional visualisation
    on an external monitor, only 3.BMT200-1(2).OP40.HDMI

Advantages for profitable and successful operation

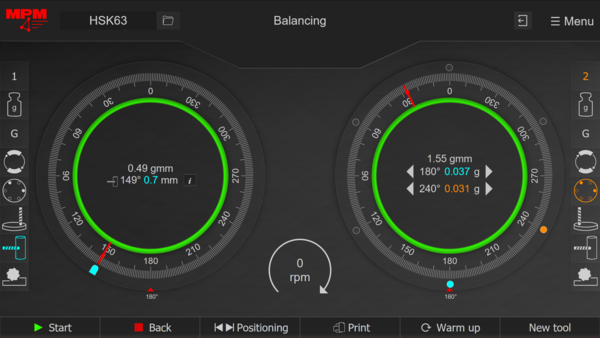

  • Design of your own user interface, e.g. for machine manufacturers.
    Source code for the customised user interface is supplied.
  • Flexible choice of operating system, e.g.: Linux, Windows from version 8.
  • Accessible via network (CAN bus-Raspberry network).
  • Multiple measurements possible during set-up and balancing.
  • The change error during tensioning is averaged by multiple measurements.
  • This helps in the case of defective mounts or clamping devices.
  • Selection of queries
    - before balancing: Series-#, Order-#, Inspector
    - after balancing: Remark and how the result before/after should be saved or printed
  • Data storage in CSV format for further data processing.
  • Clear formatting and assignment of dimensions, colours and texts.
  • Network, USB and HDMI connection for external screen.
  • Virtual keyboard for touch screens.

Catalog-# / Description

Catalog-# Order-# Description
3.BMT200-1.OP40 1062984A Balancing station for 1 plane
3.BMT200-1.OP40.HDMI 1067988A Balancing station for 1 plane with HDMI interface
3.BMT200-2.OP40 1063122A Balancing station for 1 + 2 planes
3.BMT200-2.OP40.HDMI 1067991A Balancing station for 1 + 2 planes with HDMI interface

Technical details

Technical data
Power supply 115/230V, 50-60Hz
Power input approx. 140W
Speed range 500...2000-1 ±1min-1
Operation Quick Start Keypad
Measuring accuracy approx. 0,5gmm/kg
Spindle adapter Ø 50mm
Weight range approx. 10kg
Dimensions WxHxD approx. 460x790x590mm
Weight approx. 45kg
Temperature (operating): 0°C...+50°C
Temperature (storage): -10°C...+60°C
Humidity: 20%...50% rel. humidity
Operating pressure min. 6 bar max. 8 bar
Interfaces 2x USB, 1x RJ45 (LAN), 1x HDMI (only 3.BMT200-1(2).OP40.HDMI)

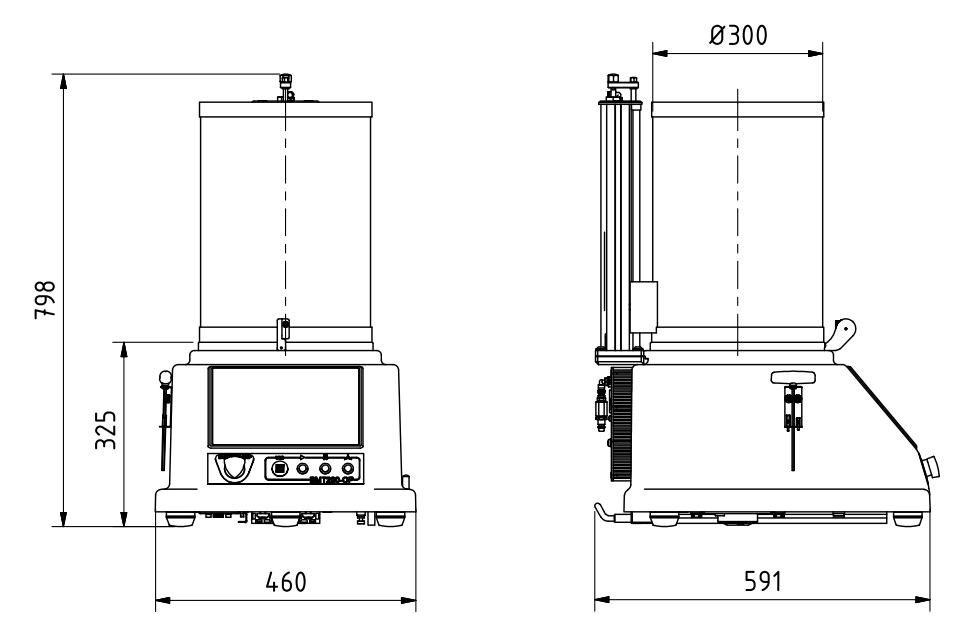

Dimensional drawings

Product video

AccessoryDescription Article
Clamping adapter SK/BT 3.AD.P.SK/BTxxto product
Clamping adapter HSK 3.AD.P.HSKxxto product
Clamping adapter for polygon-cone shaft 3.AD.P.PSCto product
Clamping adapter for collets 3.AD.P.SZto product
Clamping adapter for expansion sleeves 3.AD.P.SHto product
Balancing workstation 3.BDto product
Special protective covers 3.SSHto product
Precision pocket scales 3.CMto product
Grub screw set M6, especially for tool holders 3.0.WGS07to product
Grub screw sets 3.0.WGSto product
Vibration sensor for BMT station 3.PU.M1to product
Line laser 3.LP.04to product
Test masses for setup / calibration 3.TGto product
Balancing putty 3.0.WK02to product
