Article 3.AB50T1.C.EXT.24 and 3.AB50T1.C.EXT.230
Catalog-# / Description
Technical details
| Technical data | ||
|---|---|---|
| Power consumption approx. | 73 VA | |

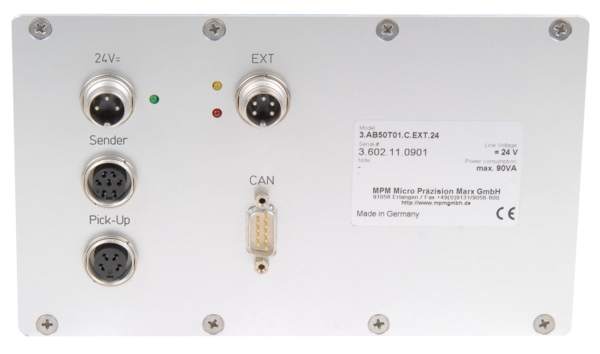

| CONLESS transmitter connection | 7-pin | |
| Vibration sensor connection | 4-pole | |
| External output | 5-pole | |

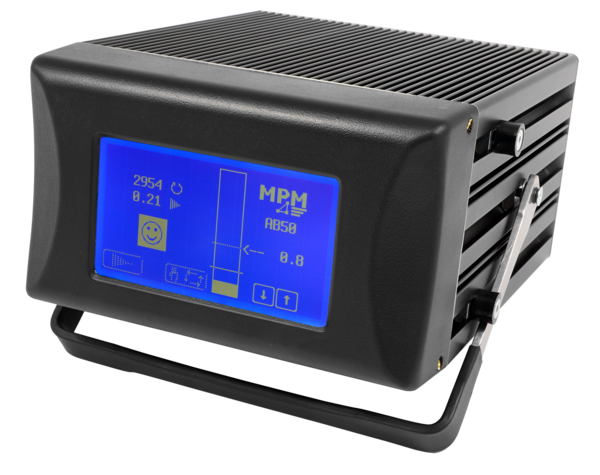

| Operation | Touch screen | |
| Display accuracy | ±1 digit | |

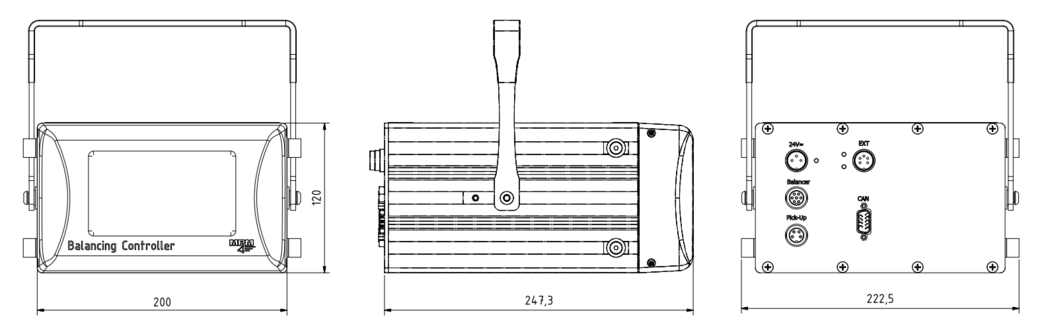

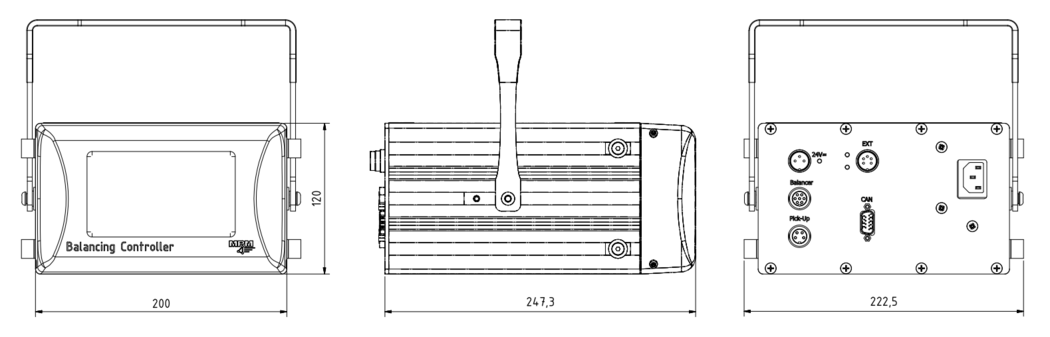

| Dimensions W x H x D | 200 x 120 x 245mm | |
| Weight approx. | 4 kg | |
| Standard housing | aluminium profile with plastic front | |
| Ambient temperature during operation | 0 °C to +50 °C | |
| Ambient temperature during storage | -10 °C to +60 °C | |
| Humidity | 20 % to 50 % rel. humidity |
| Accessory | Description | Article | |
|---|---|---|---|
 | Vibration sensor | 3.PU | to product |
 |
Cable (extension), 4-pin for vibration sensors Socket / Connector | 3.4xxBS | to product |
 |
CONLESS transmitter, 7-pin without AE acoustic emission | 3.SxxC | to product |
 |
Cable (extension), 7-pin for CONLESS transmitters Socket / Connector | 3.7xxBS | to product |
 |
CONLESS receiver, 3-pole without AE acoustic emission | 3.Exx | to product |
 |
Spiral cable, 3-pole Connection between electronics and ISB type A and B For ISB apparatus without AE acoustic emission signal | 3.3.Sxx.SS | to product |
 |
built-in balancer without AE acoustic emission signal | 3.ISB | to product |
 |
Built-in balancers without AE acoustic emission signal for use in HSK receptacles. From HSK63 to HSK125 | 3.ISBxxxC | to product |
 |
Add-on balancers without AE acoustic emission signal | 3.ESB | to product |
