MPM

Article 3.5.Sxx.SS

3.5.Sxx.SS

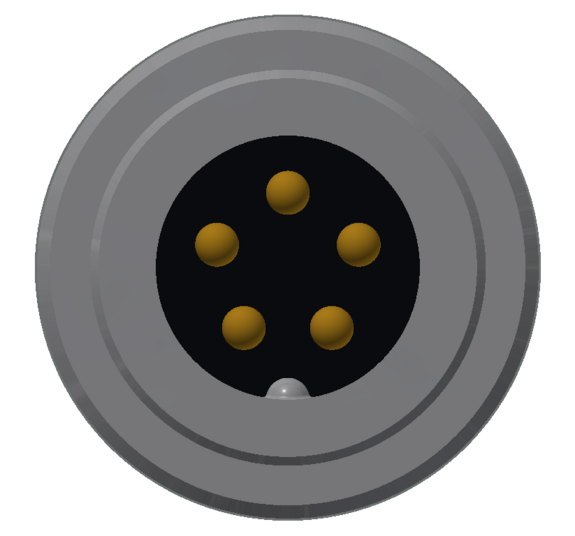

male 1, 5-way
male 2, 5-way

3.5.Sxx.SS

  • Connection between transmitter and balancer (ISB),
    with GAP and without neutral position
  • Plug / Plug
  • 5-pole

Further cable lengths on request.

Catalog-# / Description

Catalog-# Order-# Description
3.5.S01.SS 1015134A min. insertion length 145mm / max. insertion length 236mm, max. expandable up to 260mm
3.5.S02.SS 1015135A min. insertion length 190mm / max. insertion length 372mm, max. expandable up to 420mm
3.5.S03.SS 1015136A min. insertion length 324mm / max. insertion length 780mm, max. expandable up to 900mm
3.5.S04.SS 1015137A min. insertion length 660mm / max. insertion length 1800mm, max. expandable up to 2100mm

Dimensional drawings

AccessoryDescription Article
Receiver
with AE acoustic emission
3.E.xxG(A)to product
Built-in Balancers, Type A and B
with AE acoustic emission
3.ISB.xxxA / 3.ISB.xxxBto product
