MPM

Article 3.E.41

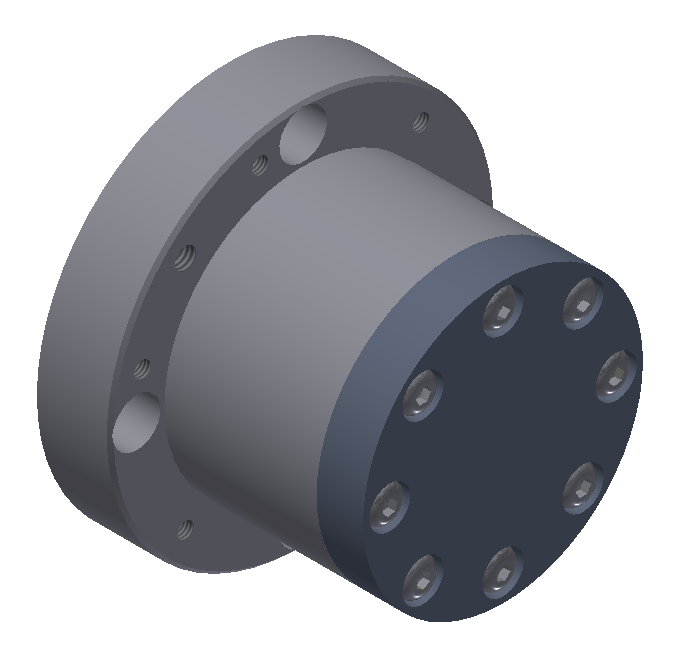

Receiver for balancers
Ø42 and Ø50mm

For controlling MPM-CONLESS balancers

  • Plug 3-pole, for receiver without AE acoustic emission
  • Plug 5-pole, for receiver with AE acoustic emission

Catalog-# / Description

Catalog-# Order-# Description
3.E.41 1016566A 3-pole, aluminium housing, without AE acoustic emission
3.E.41G 1016567A 5-pole, steel housing (burnished), with AE acoustic emission

Technical details

Technical Data 3.E.41
Dimensions D x H Ø42/Ø58x34mm with flange
Case Aluminium
Flange Steel, burnished
Connection 3-pole
Technical Data 3.E.41G
Dimensions D x H Ø42/Ø58x34mm with flange
Case Steel, burnished
Flange Steel, burnished
Connection 5-pole

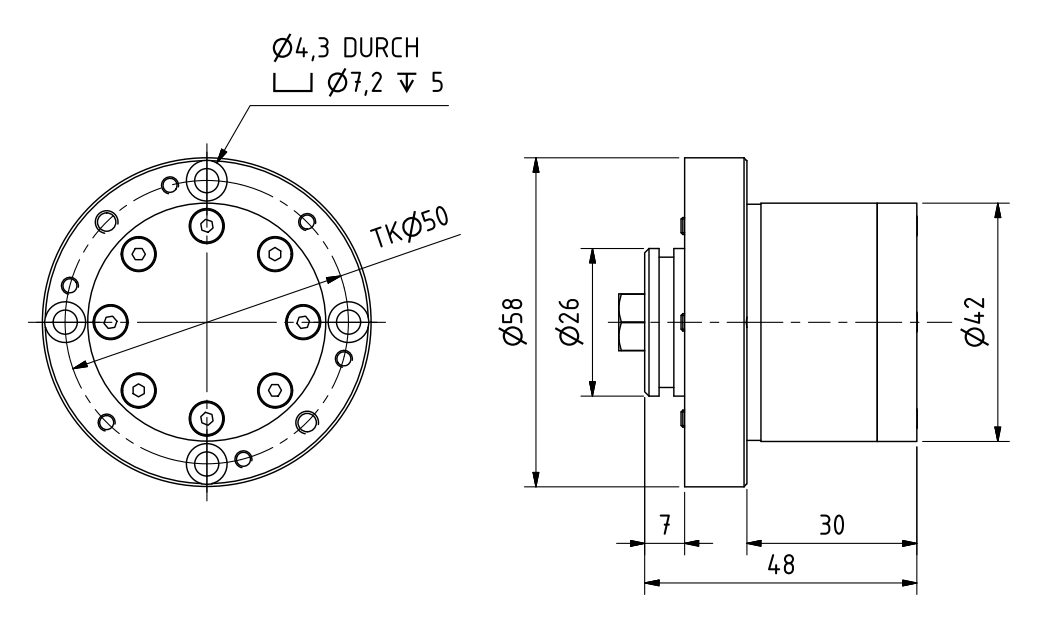

Dimensioned drawing
