MPM

Article 3.E.43

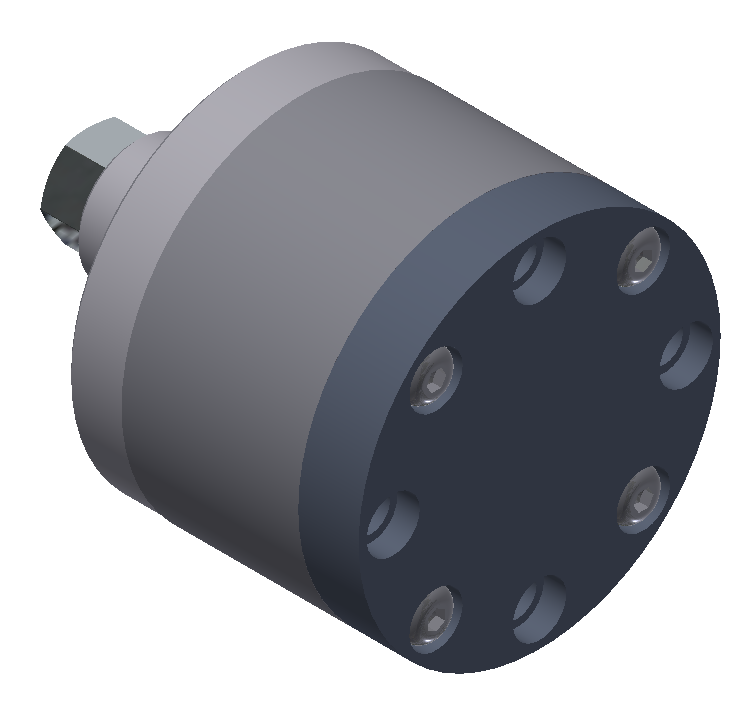

Receiver for balancers
Ø42 and Ø50mm

For controlling MPM-CONLESS balancers

  • Plug 3-pole, for receiver without AE acoustic emission
  • Plug 5-pole, for receiver with AE acoustic emission

Catalog-# / Description

Catalog-# Order-# Description
3.E.43 1016570A 3-pole, steel housing (burnished), without AE acoustic emission
3.E.43G 1016572A 5-pole, steel housing (burnished), with AE acoustic emission
3.E.43GA 1016573A 5-pole, steel housing (burnished), with AE acoustic emission (filter type "A")

Technical details

Technical Data 3.E.43
Dimensions D x H Ø43x34mm
Case Steel (burnished)
Connection 3-pole
Technical Data 3.E.43G(A)
Dimensions D x H Ø43x34mm
Case Steel (burnished)
Connection 5-pole

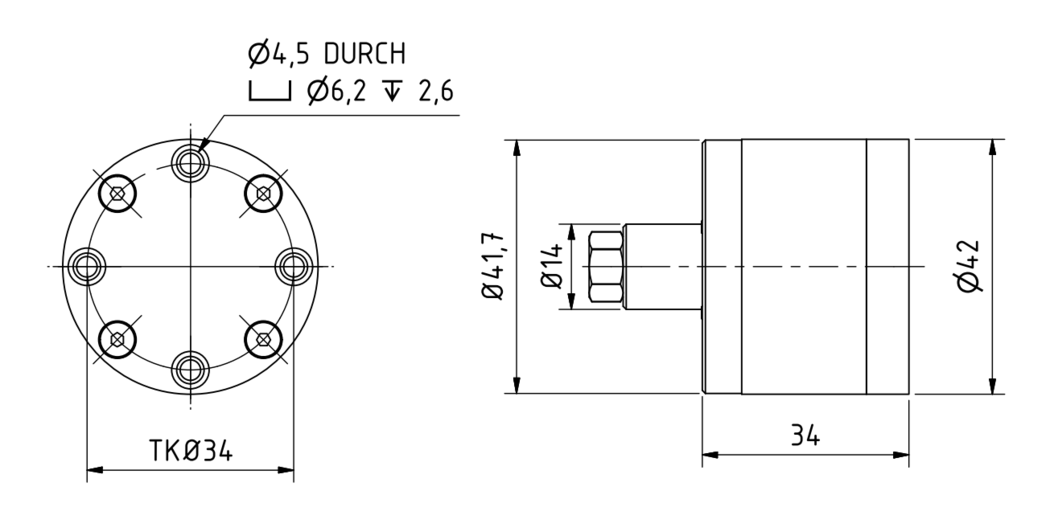

Dimensioned drawing
