Article 3.WV01.OD.02

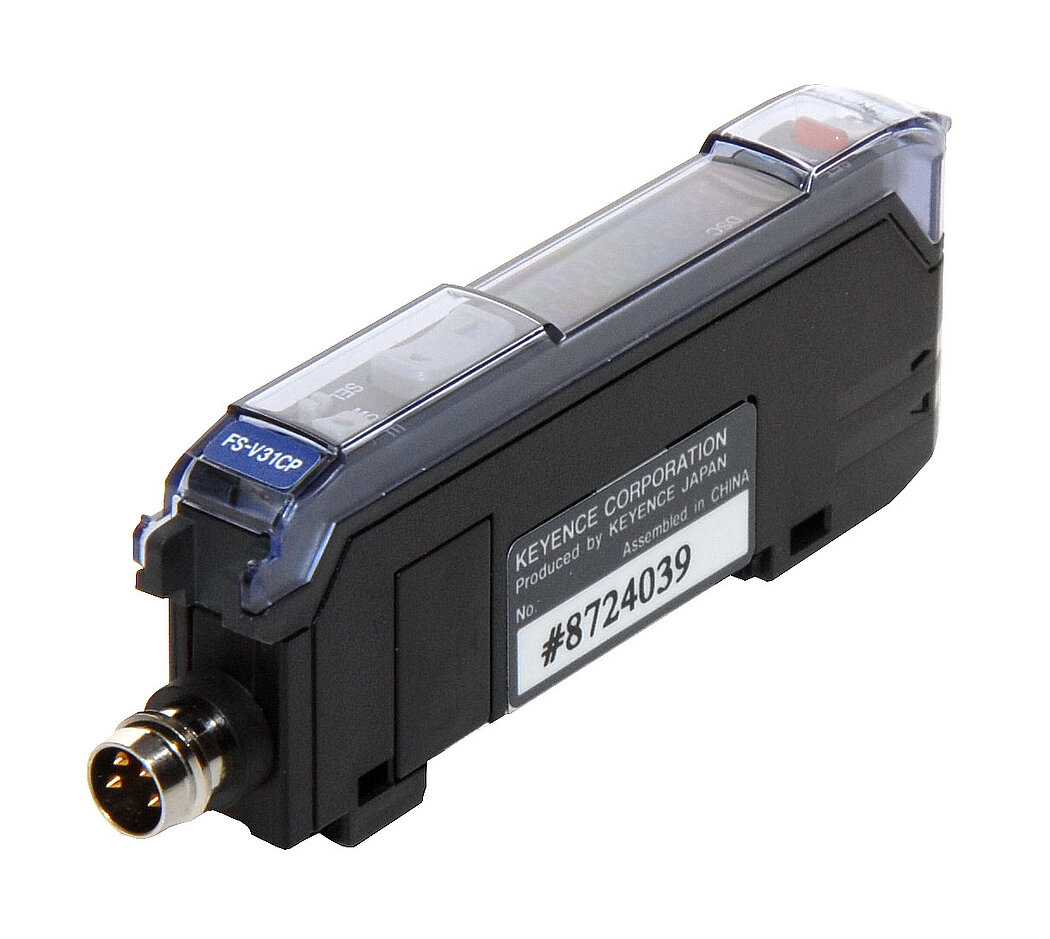

Speed sensor optical with learning function

For detecting spindle speeds.

With plug-compatible connection to the evaluation electronics.



Catalog-# / Description

Catalog-# Order-# Description
3.WV01.OD.02 1018361A Optical speed measurement with light guide and amplifier.

Technical details

Technical data
Voltage range 12 - 24 V
Power input Max. 36 mA at 24 V, max. 48 mA at 12 V
Light spot size Approx. 5mm diameter (with recognition distance of 100mm)
Working area up to approx. 60.000 min-1
Working distance up to 130mm
Exit NPN
Light type Rote LED

Dimensioned drawing

Application examples

Schematic diagram

All speed sensors can be mounted radially or axially.
Optical sensors must be fitted with reflectors that provide good light/dark contrast.
