Article 3.HM5

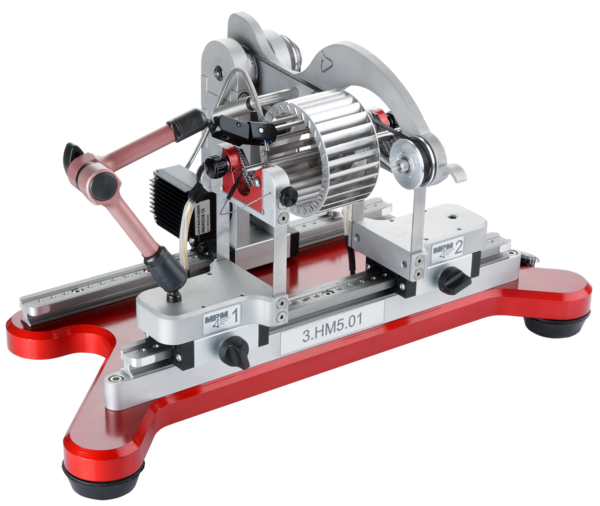

Horizontal balancing machine HM5
For balancing cylindrical and shaft-shaped rotors
- For rotor weights from 10g to 500g
- Highest measuring accuracy up to 0,01gmm/kg
- Pleasantly simple operation

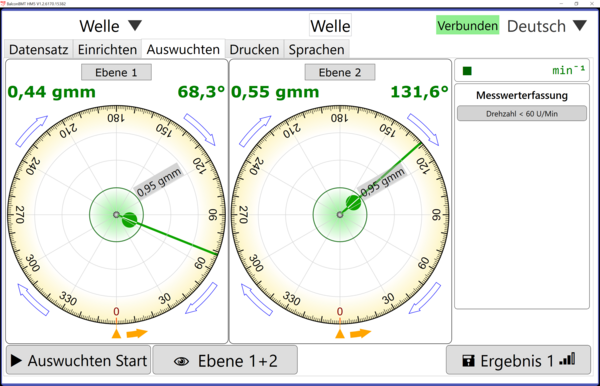

- Software for 1- and 2-plane measurement
- Test report printing at the touch of a button
- Data export of balancing results
- International Languages (D, E, ES, F, I, R, CN, PT, HR,)
- Protective hood and table = optional
Special versions available on request.
Catalog-# / Description
Technical details
| Mechanic | Electronic / Sensor |
|---|---|
| Rotor weight up to 500g | Balancing electronic complete, 3.BMT240M.T.2 |
| Rotor - Ø up to approx. 80 mm | Start module 3.HM5.SM02 Speed control, left/right rotation |
| Rotor lengths up to approx. 200 mm, speed-controlled servo drive, belt drive with 2 adjustment options | |
| Rotor spigot - Ø 3 to 15 mm | Balancing accuracy 0,01gmm/kg |
| Base area 450 x 250 mm Machine weight approx. 6.5 kg | Speed sensor optical, 3.WV01.OD.02 |
| Slide guide adjustable without play | Vibration sensor 3.PU.M9.4.01,5.V2.1 (2x) |
| Protective cover (optional) | DIN A4 protocols (PC) |
| Documentation | 230 V / 50 Hz; 120 W |
| Accessory | Description | Article | |
|---|---|---|---|
 | Balancing electronics incl. balancing software BalconBMT for 3.HM5 | 3.BMT240M.T.2 | to product |
 | Start module for 3.HM5 | 3.HM5.SM02 | to product |
 |
CAN-USB adapter, Connection between PC and data cable | 3.CAN.USB.TS | to product |
 |
Data cable, 9-pin, Connection between balancing electronics and CAN-USB adapter | 3.DKC.B09.01 | to product |
 | Precision pocket scales | 3.CM | to product |
 | Grub screw sets | 3.0.WGS | to product |
 | Vibration sensor for 3.HM5 | 3.PU.M9.4.1,5.V2.1 | to product |
 | Speed sensor optical for 3.HM5 | 3.DS.WV01.OD.02 | to product |
 | Articulated tripod, for mounting the speed sensor | 3.0.GS00 | to product |
 | Test masses for setup / calibration | 3.TG | to product |
 | Balancing putty | 3.0.WK02 | to product |
