Article 3.BMT240M.T.2

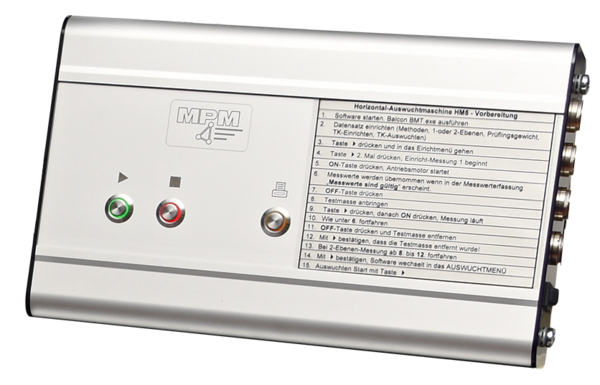

Balancing electronic for horizontal balancing machine HM5
For balancing cylindrical and shaft-shaped rotors
For balancing in 1 + 2 planes,
in conjunction with 3.HM5 and start module 3.HM5.SM02
- Extremely simple operation via Quickstart keys
- Connection to PC (customer side with Windows10) via CAN / CAN-USB connection
- Incl. balancing software BalconBMT
- International Languages D / E / F / I / ES / PT / RU / ZH / HR
- For speeds from 61 - 90 000min-1
- Sturdy, shapely aluminium housing (PROFILINE housing)
Catalog-# / Description
Technical details
| Technical data | ||
|---|---|---|
| Operating voltage | 24V= | |
| Power input approx. | 15 W | |
| Speed range (depending on vibration sensor) | 61 to 90000 1/min ±1 1/min | |
| Operation | Quick Start Keys | |

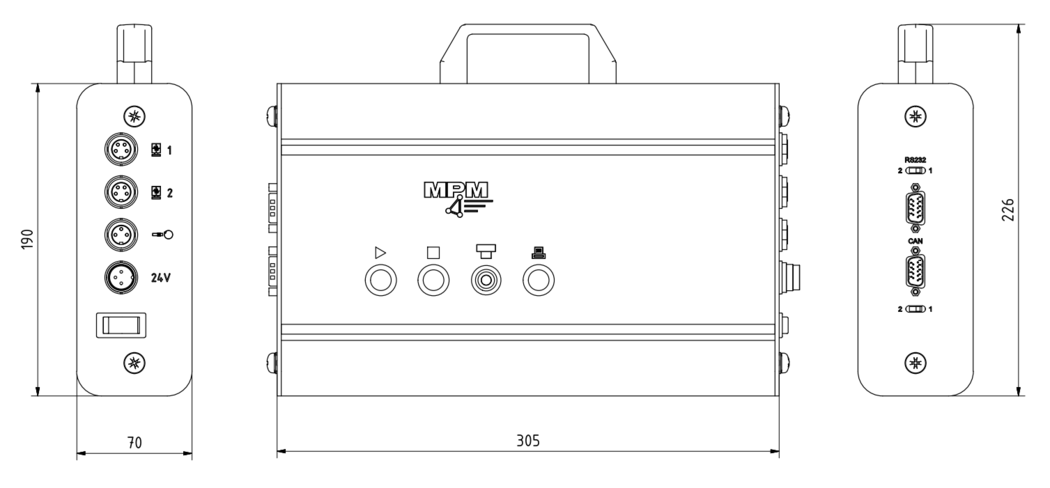

| Dimensions W x H x D | 305 x 190 x 70mm | |
| Weight approx. | 3 kg | |
| Standard enclosure | PROFILINE | |
| Ambient operating temperature | 0 °C to +50 °C | |
| Ambient storage temperature | -10 °C to +60 °C | |
| Air humidity | 20 % to 50 % rel. humidity |
| Accessory | Description | Article | |
|---|---|---|---|
 | Horizontal balancing machine 3.HM5 | 3.HM5 | to product |
 | Start module for 3.HM5 | 3.HM5.SM02 | to product |
 |
CAN-USB adapter, Connection between PC and data cable | 3.CAN.USB.TS | to product |
 |
Data cable, 9-pin, Connection between balancing electronics and CAN-USB adapter | 3.DKC.B09.01 | to product |
 | Precision pocket scales | 3.CM | to product |
 | Grub screw sets | 3.0.WGS | to product |
 | Vibration sensor for 3.HM5 | 3.PU.M9.4.1,5.V2.1 | to product |
 | Speed sensor optical for 3.HM5 | 3.DS.WV01.OD.02 | to product |
 | Articulated tripod, for mounting the speed sensor | 3.0.GS00 | to product |
 | Test masses for setup / calibration | 3.TG | to product |
 | Balancing putty | 3.0.WK02 | to product |
