Article 3.HM50

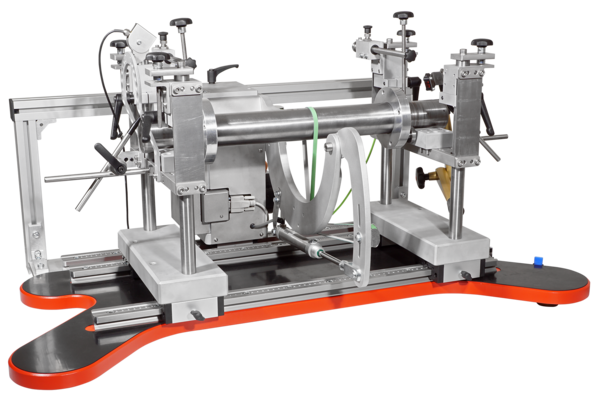

Horizontal balancing machine HM50-30HF
For balancing cylindrical and shaft-shaped rotors
- For rotor weights up to max. 30kg
- Highest measuring accuracy up to 0,1gmm/kg
- Pleasantly simple operation

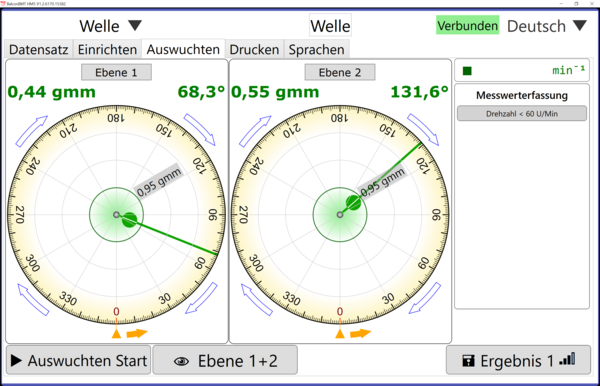

- Software for 1- and 2-plane measurement
- Test report printing at the touch of a button
- Data export of balancing results
- International Languages (D, E, ES, F, I, R, CN, PT, HR,)
- Protective cover incl., base optional
Special versions available on request.
Catalog-# / Description
Technical details
| Mechanic | Electronic / Sensor | 3.HM50-30HF |
|---|---|---|
| Rotor weight up to max. 30 kg | Balancing electronics complete, 3.BMT240M.T.2.S3.I/O with Quickstart buttons | |
| Rotor - Ø up to approx. 200 mm | Balancing accuracy 0.1 gmm/kg | |
| Rotor lengths up to approx. 700 mm | Vibration sensor 3.PU.M6.3.0.V2.1 (2x) | |
| Rotor spigot - Ø 15 - 150 mm | Speed sensor 3.DS.PZ-G 101CP | |

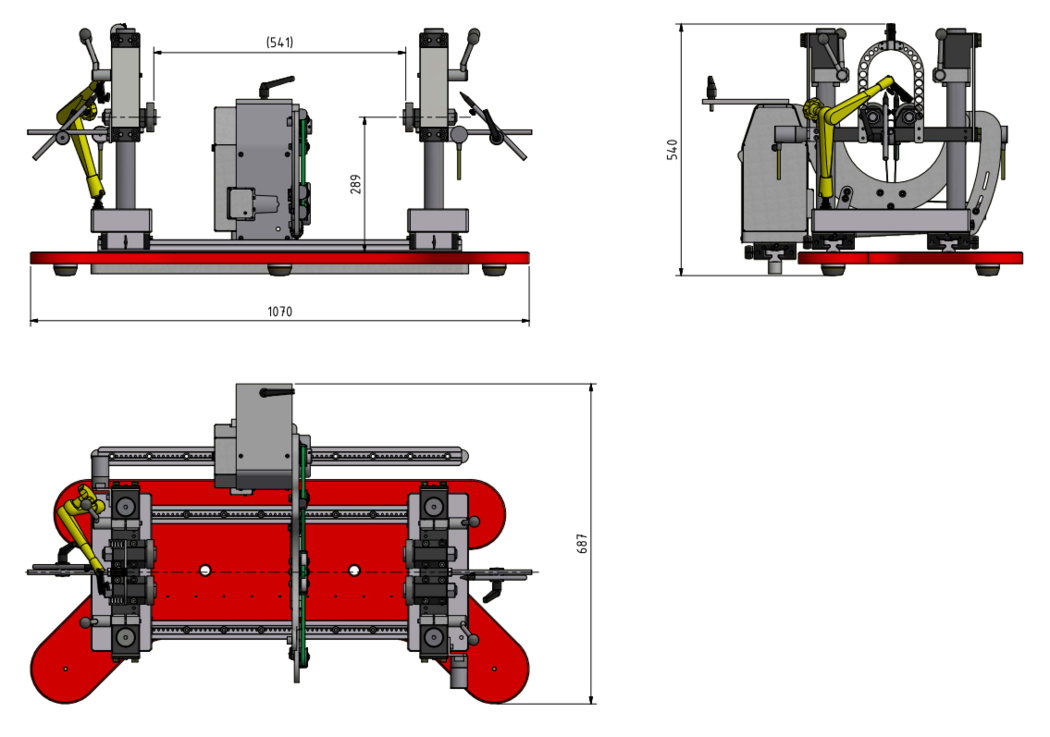

| Base area 1100 x 500 mm Machine weight approx. 50 kg | Start module 3.HM50.SM with frequency converter Speed control, left/right rotation | |
| Line laser, angle measuring device | 230 V / 50 Hz; 120 W (asynchronous motor) | |
| Protective cover (optional) | Data cable, CAN-USB adapter |
| Accessory | Description | Article | |
|---|---|---|---|
 |
Balancing electronic incl. balancing software BalconBMT for 3.HM50 / 3.HM50-30HF | 3.BMT240M.T.2.S3.E/A | to product |
 | Start module for 3.HM50 / 3.HM50-30HF | 3.HM50.SM | to product |
 |
CAN-USB adapter, Connection between PC and data cable | 3.CAN.USB.TS | to product |
 |
Data cable, 9-pin, Connection between balancing electronic and CAN-USB adapter | 3.DKC.B09.01 | to product |
 | HM50 workplace / protective enclosure | 3.HM50.SE / 3.HM50.SH | to product |
 | Precision pocket scales | 3.CM | to product |
 | Grub screw sets | 3.0.WGS | to product |
 | Vibration sensor for 3.HM50 | 3.PU.M6.3.0.V2.1 | to product |
 | Cable 4/3-pole for HM50 vibration sensor | 3.4/301SB | to product |
 | Speed sensor optical for 3.HM50 | 3.DS.PZ-G101CN | to product |
 |
Cable 4/3-pole for HM50 speed sensor 3.DS.PZ-G101CN | 3.4/305BS.DS.M8.1 | to product |
 | Articulated tripod, for mounting the speed sensor | 3.0.GS01 | to product |
 | Test masses for setup / calibration | 3.TG | to product |
 | Balancing putty | 3.0.WK02 | to product |
